What equipment should I buy? And what size?
Equipment selection directly determines product quality, production costs, and return on investment.
Jndwater, with its extensive experience of 18 years in manufacturing beverage filling machines and serving 125 countries worldwide, has over 9,000 full-line cases of beverage filling equipment. This article will focus on the equipment, helping you clarify the components of an energy drink production line and provide a guide to avoid pitfalls.
What equipment is required for an energy drink production line?
A complete energy drink production line, from raw materials to finished products, requires the following core equipment
| Equipment Module | core equipment | effect |
| water treatment equipment | Multi media filter, activated carbon filter, softener, reverse osmosis (RO) | Process raw water into pure water suitable for beverage use |
| ingredients | Sugar pot, ingredient tank, high-speed mixer, dual filter | Dissolve sugar and mix various ingredients |
| Carbonation system | Carbonization tank, jet injector, CO ₂ gas source, cooling system | Inject carbon dioxide to form carbonated beverages |
| Bottle filling machine | Isobaric filling machine, capping machine or sealing machine | Pour the beverage into the container and seal it |
| Sterilization / Bottle Warming | Warm bottle machine or sterilization tunnel | Stabilize the temperature of the bottle body and prevent condensation |
| Labeling machine system | Adhesive Labeling Machine, Set Labeling Machine, Hot Melt Adhesive Labeling Machine, OPP Labeling Machine, Cold Adhesive Labeling Machine | Attach labels |
| Packaging machine system | Film wrapping machine or cardboard box packing machine | Combine single bottle products into sales units |
| Palletizing system | Robot palletizer or high-level palletizer | Automatic stacking of finished products |
Core equipment selection
- Water treatment system
85% -95% of energy drinks are water, and water quality directly determines the final quality.
Energy drinks have slightly lower requirements for water purity than pure water, but they must be stable. It is recommended to leave a 20% margin when selecting to avoid water source fluctuations affecting production.
| TDS | Recommended Configuration | conductivity | applicable |
| <300 ppm | First-level RO | 5-15 μS/cm | Ordinary energy drinks |
| 300-800 ppm | First level RO+softening | 8-20 μS/cm | Preprocessing is required |
| >800 ppm | Secondary RO | 1-5 μS/cm | High requirements, export grade |
- Ingredient system: the core of flavor
The formula for energy drinks is complex, requiring precise mixing of ingredients such as sugar, caffeine, vitamins, taurine, etc.
Key selection points:
Heating function: Sugar needs to be heated and dissolved
- Cooling function: Some vitamins are sensitive to high temperatures and need to be added after cooling down
Mixing method: high-speed shearing vs low-speed mixing
| configuration | feature | applicable |
| Sugar pot+ingredient tank | Dissolve sugar first and then mix, classic configuration | Most energy drinks |
| High shear mixing tank | Strong stirring, suitable for insoluble ingredients | Containing powdered raw materials and stabilizers |
| Fully automatic batching system | PLC control, automatic feeding | Large scale, multi formula |
- Carbonation system
Most energy drinks are carbonated, and their gas content directly affects their taste and stimulation.
- Filling machine system
This is the most expensive and critical equipment in the entire line.
| packaging | Filling method | sealing method | Recommended models |
| can | Isobaric filling | Can seaming machine | Filling and sealing machine |
| PET bottle | Isobaric filling | capping machine | 3 in 1 bottle filling machine |
| glass bottle | Isobaric filling | capping machine | 3 in 1 bottle filling machine |
5.Labeling system
| Label Type | equipment | feature | applicable |
| self-adhesive | Adhesive Labeling Machine | High precision, suitable for small batches | Multiple varieties, high-end |
| Set label | Labeling machine+shrinkage furnace | Full package, with good anti-counterfeiting measures | Common energy drinks |
| hot melt adhesive | Hot melt adhesive labeling machine | Low cost, fast speed | Large quantities of single specifications |
6.Packaging system
| form | equipment | feature |
| film packaging | Heat shrink film packaging machine | 4 cans/6 cans/12 cans per pack, low cost |
| carton | automatic boxing machine | 24 cans/box, suitable for wholesale channels |
| pallet | palletizer | Final stacking, convenient for storage and transportation |
Five major pit avoidance guidelines for equipment selection
- Don’t just focus on the filling machine
The filling machine is the core, but water treatment, ingredients, and carbonation are equally important. A good water treatment system can extend the lifespan of RO membranes by two more years; If the ingredients are not accurate, the recipe will be in vain. Matching the entire line is the key. - More production capacity is better than less
Many customers calculate production capacity based on “8 hours per day”, but in actual production, changing production, cleaning, and maintenance all take up time. It is recommended to select according to the “effective production capacity of 6 hours per day” and leave sufficient margin. - Consider changing production in the future
If you want to make different flavors and packaging in the future, you need to consider:
Can the filling machine quickly change bottle types?
Is the labeling machine compatible with different labels?
Can we add a box function? - Pay attention to energy consumption

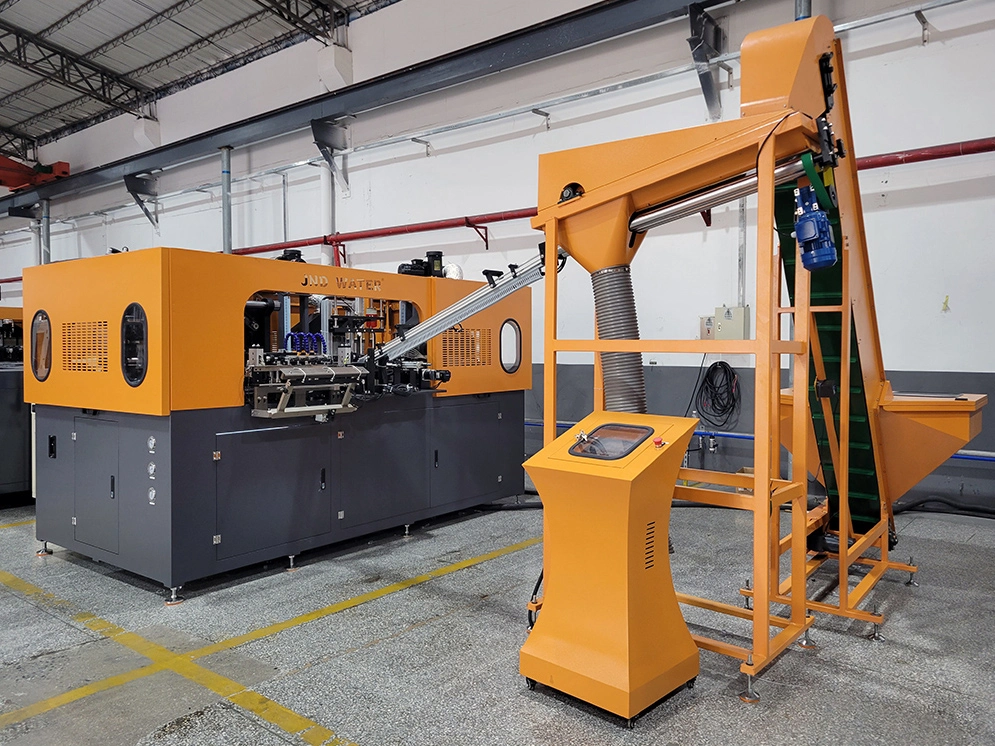

Blowing machines, air compressors, and chillers are major consumers of electricity. When selecting, ask clearly:
Is there a variable frequency control?
Can high-pressure gas be recovered?
Is the heating system well insulated? - Suppliers are more important than equipment
Equipment is just the beginning, installation and debugging, operation training, spare parts supply, and fault response are the long-term guarantees. When inspecting suppliers:
Are there any successful cases in the same industry?
Do you have a local service team?
Is the spare parts inventory sufficient?
As a supplier with over ten years of experience in the field of beverage equipment, Jndwater provides:
Whole line integration: one-stop delivery from water treatment to palletizing
- Customized design: Tailored according to your formula, packaging, and production capacity
Installation and commissioning: Engineers stationed on site to ensure stable production of equipment - Operation training: Let your team quickly get started
Global service: project experience in 125 countries, timely supply of spare parts
If you are planning an energy drink production line, please feel free to contact the JNDWATER team. We can provide free solution design and investment estimation based on your specific needs, helping you take the first step towards success.
