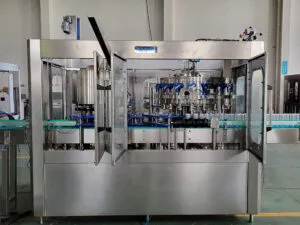

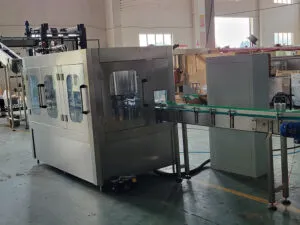

Beverage Can Filling Machine
Jndwater fully automatic beverage can filling machine is designed specifically for aluminum or tinplate cans (common capacities: 200ml, 250ml, 330ml, 500ml), and is suitable for high-speed filling of carbonated beverages (such as soft drinks and beer) and non-carbonated beverages (such as juice, tea, energy drinks, and plant-based milk). The equipment integrates bottle rinsing, filling, and automatic capping.
Beverage Can Filling Machine detailed description
Products Description
1. Product introduction
Jndwater fully automatic beverage can filling machine is designed specifically for aluminum or tinplate cans (common capacities: 200ml, 250ml, 330ml, 500ml), and is suitable for high-speed filling of carbonated beverages (such as soft drinks and beer) and non-carbonated beverages (such as juice, tea, energy drinks, and plant-based milk). The equipment integrates bottle rinsing, filling, and automatic capping.
2. Drinks Canning Machine Product features
Highly automated
Accurate filling
Strong applicability
Efficient and energy-saving
Safe and reliable
Hygienic design
3. Soda Canning Equipment Product functions
Conveying function: The conveyor belt automatically lifts and separates the stacked empty cans and feeds them into the filling machine one by one.
Flushing function: Flushing the empty cans inside and outside to ensure that there are no impurities and contaminants in the cans.
Filling function: Quickly and accurately fill the pre-measured beverages into cans.
Capping function: Automatically complete the capping operation of the cans to ensure that the capping is tight and firm.
Inspection function: Perform quality inspection on the filled beverage cans to ensure that the products meet the standard requirements
![]() |
![]() |
![]() |
4.Technical specifications
| Model | JND12-1 | JND18-6 | JND24-6 | JND32-8 | JND40-8 |
| Capacity :
(330ml can) |
2000 | 6000 | 8000 | 15000 | 30000 |
| Suitable bottle | Pop Aluminum can / Steel tin can | ||||
| Bottle Sizes | 250ml to 1Liter | ||||
| Filling Medium | Fruit Juice / Carbonated Drinks / Soda water / Energy drinks/Milk | ||||
| Rated power | 6KW | 7KW | 7.8W | 8.5KW | 9.2KW |
| Weight | 3200kg | 4200kg | 4800kg | 5200kg | 6000kg |
5. How does the soda beverage canning machine work?
Conveying cans – cleaning and disinfection – filling beverages – sealing and packaging – quality inspection
6. Applications
Carbonated drinks
Fruit drinks
Tea drinks
Energy drinks
Other drinks
7.FAQs
Q: What cans are suitable for the beverage can filling machine?
A: The can filling machine is suitable for cans of common specifications such as 330ml, 355ml, 500ml, including tinplate cans, aluminum alloy cans, etc.
