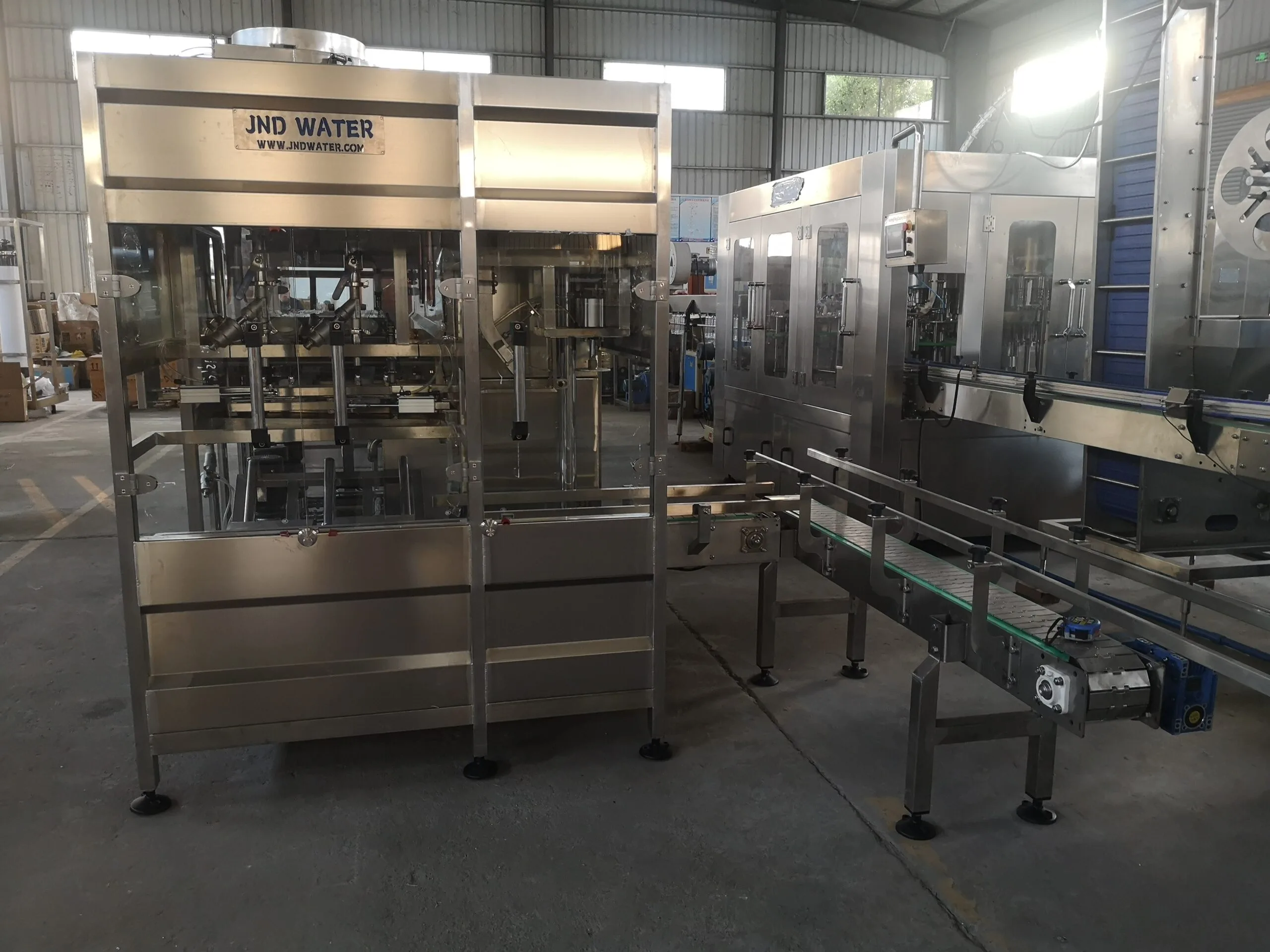

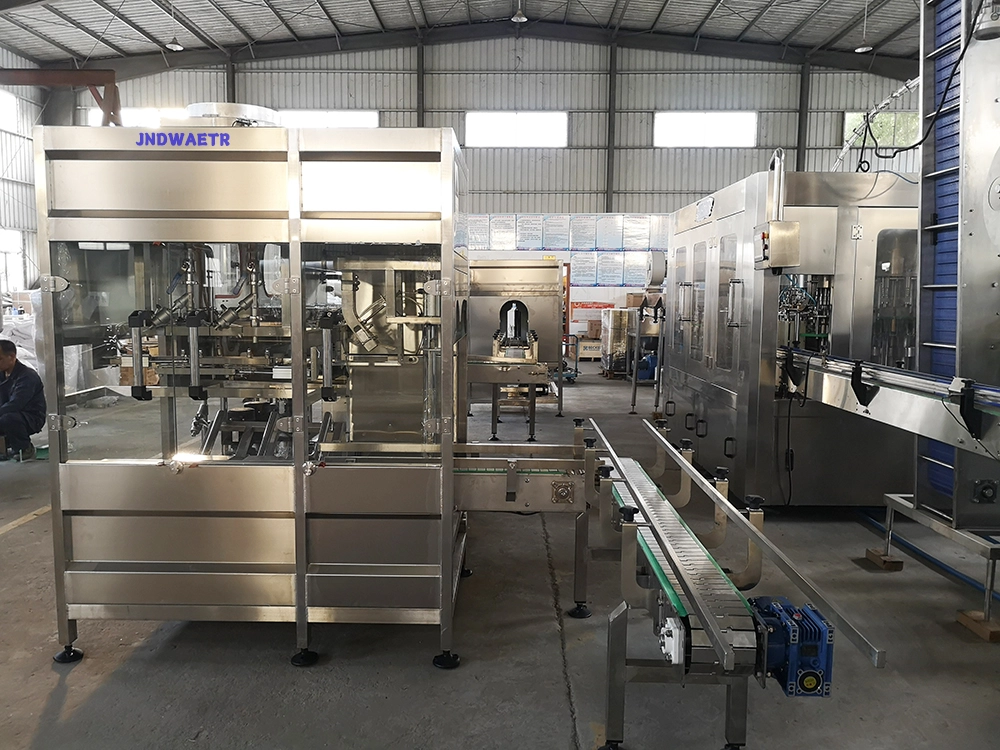

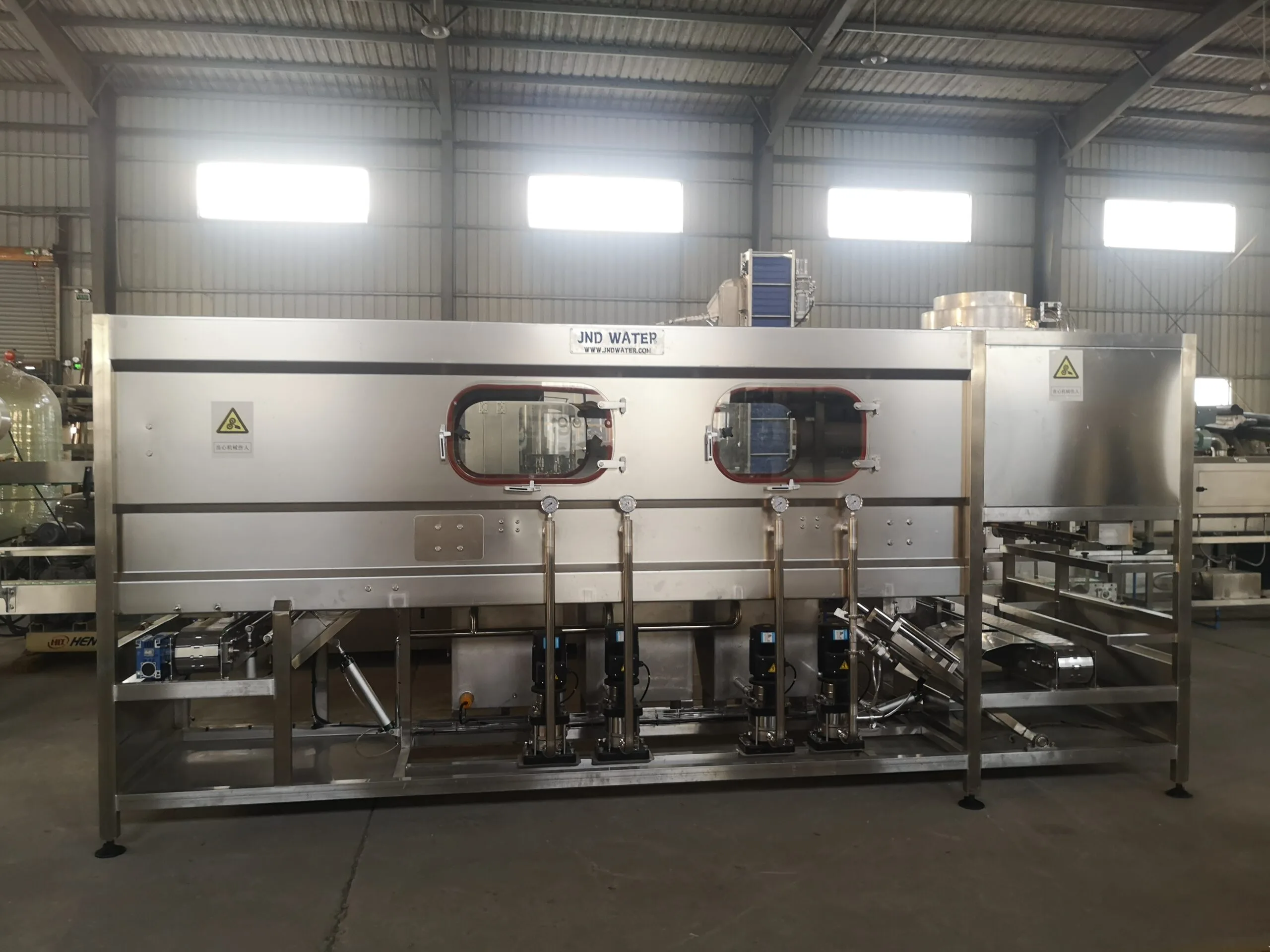

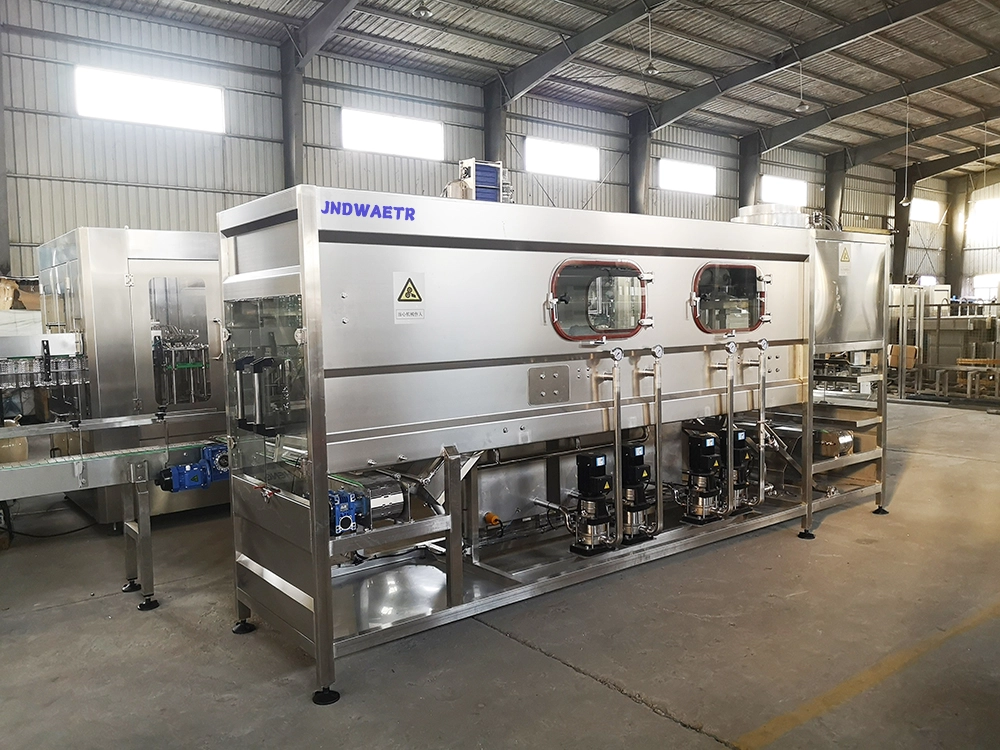

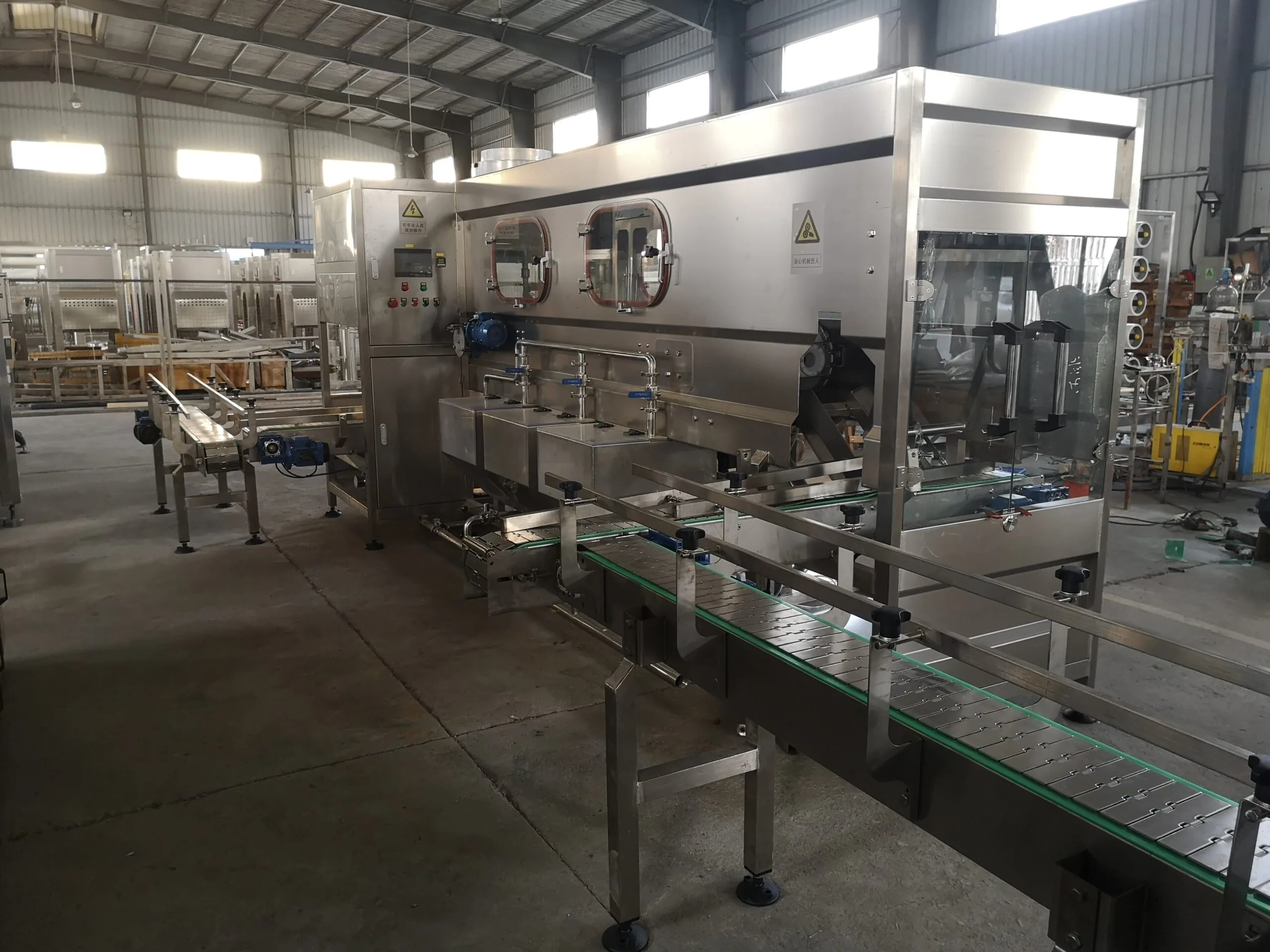

Water bottle filling machine
Jndwater water bottle filling machine is a kind of equipment specially designed to fill drinking water into bottles efficiently and hygienically. It is widely used in the drinking water industry to ensure high-speed production, accuracy and compliance with health and safety standards. It is divided into small bottle water filling machine, 5L water filling machine, 5 gallon water filling machine.
Water bottle filling machine detailed description
Products Description
Product Introduction
Jndwater water bottle filling machine is a kind of equipment specially designed to fill drinking water into bottles efficiently and hygienically. It is widely used in the drinking water industry to ensure high-speed production, accuracy and compliance with health and safety standards. It is divided into small bottle water filling machine, 5L water filling machine, 5 gallon water filling machine.
Product Features
High – speed Performance: Capable of filling a large number of bottles per minute, significantly increasing production capacity.
Precision Filling: Equipped with advanced sensors and control systems, ensuring accurate filling volume with minimal error.
Durable Construction: Made of high – quality stainless steel, it can withstand continuous operation and harsh industrial environments.
User – friendly Operation: Features an intuitive control panel for easy parameter adjustment and monitoring.
Product Functions
Bottle Conveying: Automatically transports empty bottles from the loading area to the filling stations.
Water Filling: Fills bottles with the pre – set volume of water, whether it’s purified water, mineral water, or spring water.
Capping: Tightly caps the filled bottles to prevent leakage and ensure product integrity.
Technical Specifications
| Model | JND100 | JND100 | JND100 | JND100 | JND100 | JND100 |
| Output( BPH) | 120 | 300 | 450 | 600 | 900 | 1200 |
| Voltage | AC220V/380V±5% 50HZ/60HZ | |||||
| Rated Power(kw) | 4.95 | 8.65 | 19.1 | 24.8 | 36 | 46 |
| Bottle size | 18.9 L(5 gallon) | |||||
| Bottle size(mm) | Ф270×490×Ф56 | |||||
| Cap size(mm) | Ф58×40 (Tail: L×W=18×7.5) | |||||
| Air pressure(Mpa) | 0.5~0.6 | |||||
| N.W.(KG) | 300 | 445 | 950 | 1450 | 2000 | 2600 |
| Overall Dimension(MM) | 3245*500*1600 | 3820*800*1600 | 4390*1100*1760 3000*800*1760 |
4710*1520*1760 3220*800*1760 |
5100*1850*1760 3880*800*1760 |
6200*2060*2300 2000*1900*2500 |
How does water bottle filling machine work?
Empty bottles are first placed on a conveyor belt. As the bottles move along the conveyor, they pass through a rinsing station where they are cleaned with water or air to remove impurities. Then, they reach the filling area. Sensors detect the presence of bottles and trigger the filling nozzles. Water is pumped into the bottles at a controlled flow rate until the pre – set volume is reached. After filling, the bottles are conveyed to the capping station. Here, caps are picked up by capping heads and capping onto the bottles. Finally, the filled and capped bottles are transported out of the machine for packaging and distribution.
Applications
Mineral water bottling plants.
Purified water production lines.
Spring water filling plants.
FAQ
Water filling machine price?
The output of the water bottling machine determines the price. The water filling equipment is only the main equipment on the water filling line. It also needs labeling machines, packaging machines, etc.
