Air Conveyor System

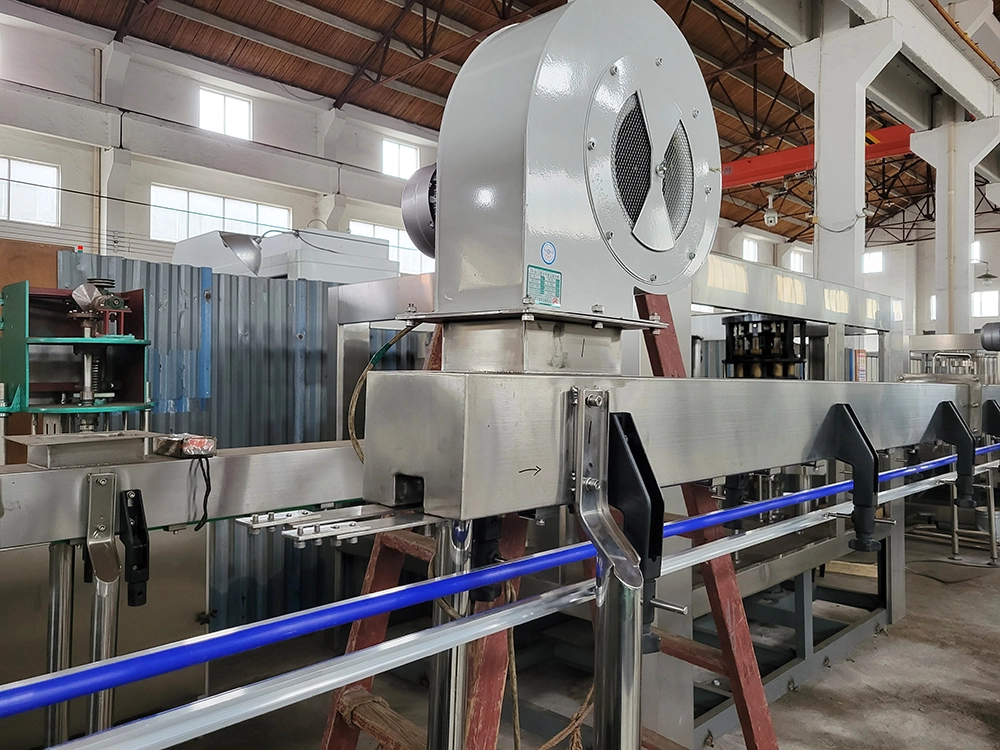

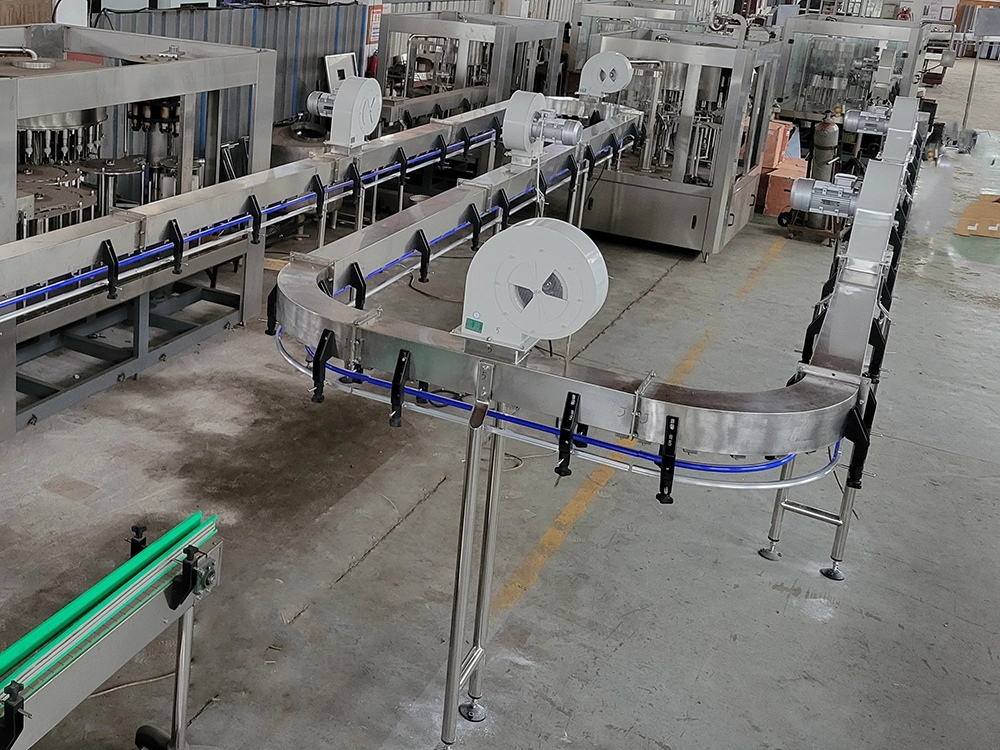

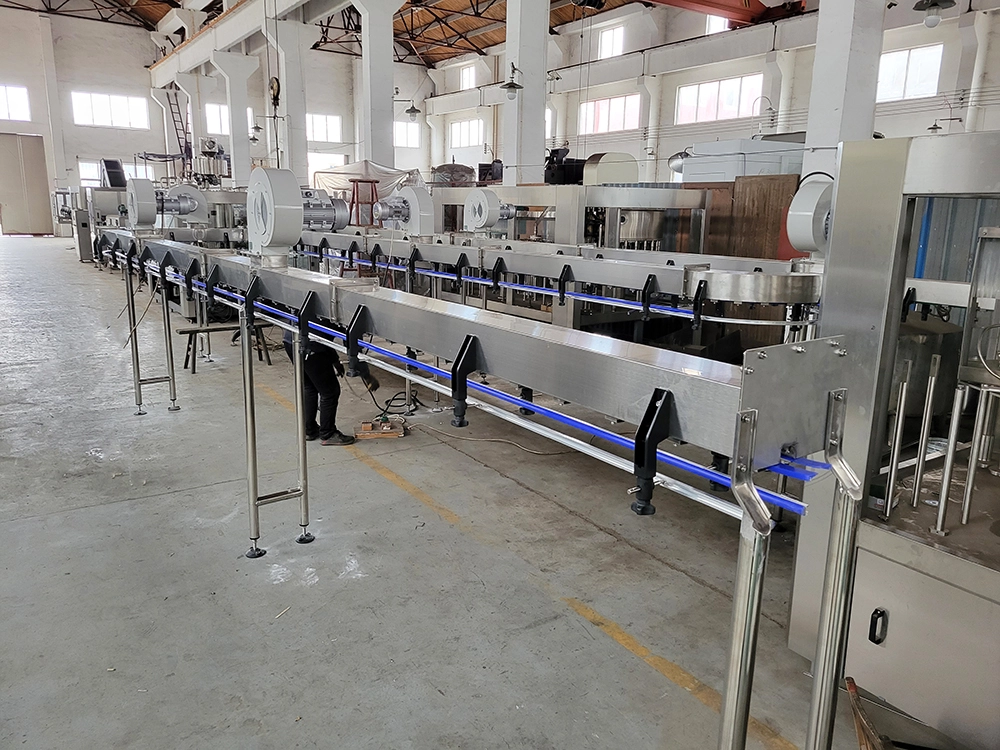

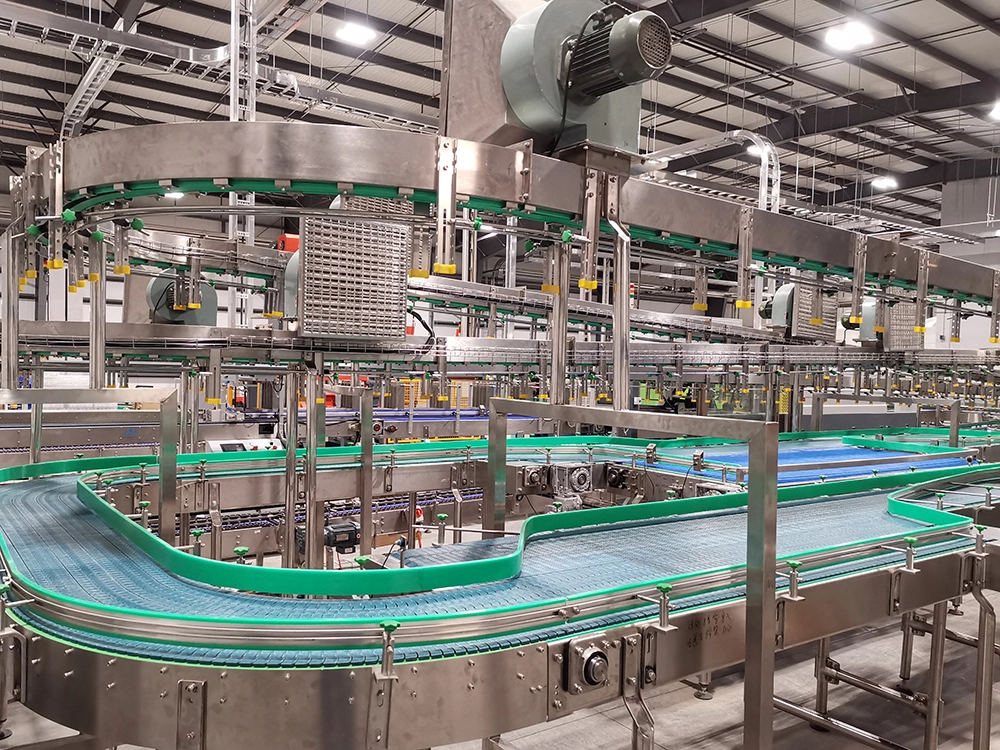

JNDWATER series air conveyor is a device that hangs empty bottles on the bottle clamping strip of the air duct housing in sequence and transports them from the bottle blowing machine to the filling machine under the wind force of the centrifugal fan. The bottle air duct conveying line consists of a fan power device, a straight air duct, a turning air duct, an uphill and downhill air duct, a separation and merging device, a bottle dropping device, and a bottle clamping device.
Air Conveyor System detailed description
Products Description
JNDWATER series air conveyor is a device that hangs empty bottles on the bottle clamping strip of the air duct housing in sequence and transports them from the bottle blowing machine to the filling machine under the wind force of the centrifugal fan. The bottle air duct conveying line consists of a fan power device, a straight air duct, a turning air duct, an uphill and downhill air duct, a separation and merging device, a bottle dropping device, and a bottle clamping device.
Air Conveyor Features:
Air conveyor usage for beverage filling line, empty bottle convey, such us water line, juice line, carbonated drinking line.
Suit for plastic bottle .
Speed from 2000BPH to 36000BPH .
Air filter is optional at every entrance of air fan, to prevent dust blown into bottles.
Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
All are made of stainless steel SUS304.
