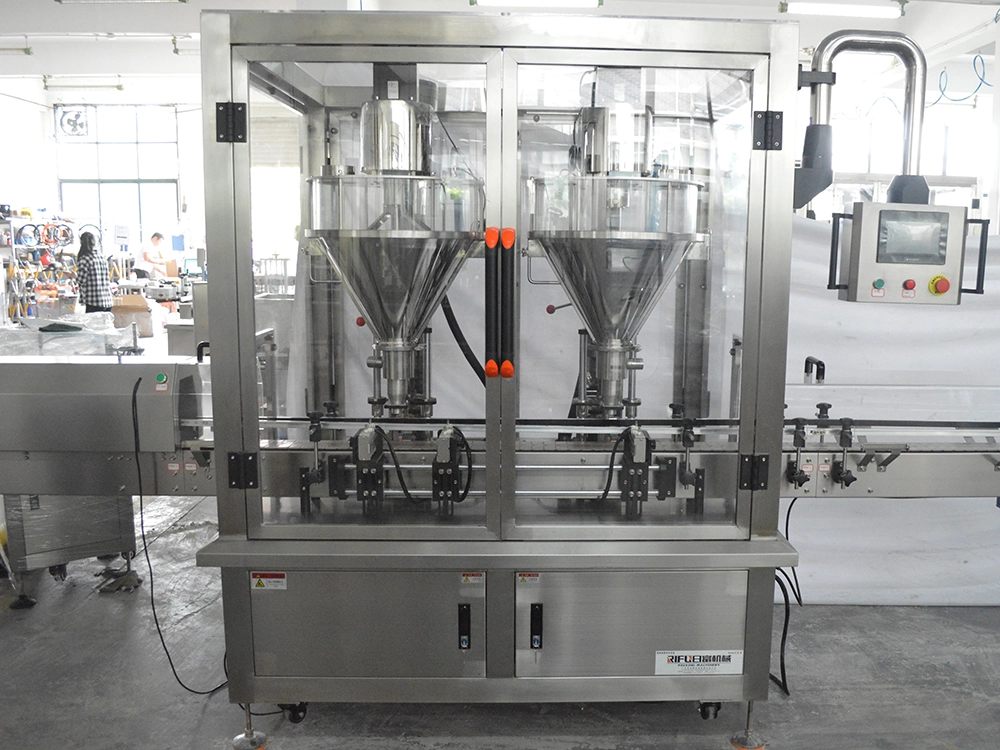

Double-head Powder Filling Machine
jndwater powder filling machine is designed according to national GMP standards. It can be integrated with bottle unscramblers, capping machines, and labeling machines to form a production line.
Double-head Powder Filling Machine detailed description
Products Description
jndwater powder filling machine is designed according to national GMP standards. It can be integrated with bottle unscramblers, capping machines, and labeling machines to form a production line.
It is suitable for filling powdered materials in the food, pharmaceutical, and daily necessities industries, such as milk powder, glucose, protein powder, cocoa powder, coffee powder, rice flour, and solid beverage powders, including ultrafine powders.
The entire machine frame is made of stainless steel. Motors, cylinders, electrical components, and pneumatic components are all from well-known brands, or customer-specified brands can be used. It is suitable for food, pharmaceutical, and corrosive chemical raw materials.
Centralized dust collection ensures a dust-free workshop. Residual material is easy to clean; it can be rinsed with water.
1. All-stainless steel structure, modular transparent material bin, easy to disassemble and clean without tools.
2. High-precision servo motor control for accurate metering.
3. Various product adjustment parameters and formulas can be stored for future use, up to 8 formulas can be stored.
4. By changing the screw attachment, it can adapt to various materials from ultrafine powders to small particles.
5. Touch screen PLC control, no filling without a bottle.
Technical Specifications
| Model | JND-F80 |
| Production capacity | 15-40 cans/minute |
| Adapt to specifications | Customizable (Variable Spiral Attachment) |
| Number of filling heads | double-headed |
| Measurement error | ±1% |
| Power supply | 380V |
| Power | 3KW |
| External dimensions | 2000×1200×2000mm |
| Weight | About 800kg |
Detail image

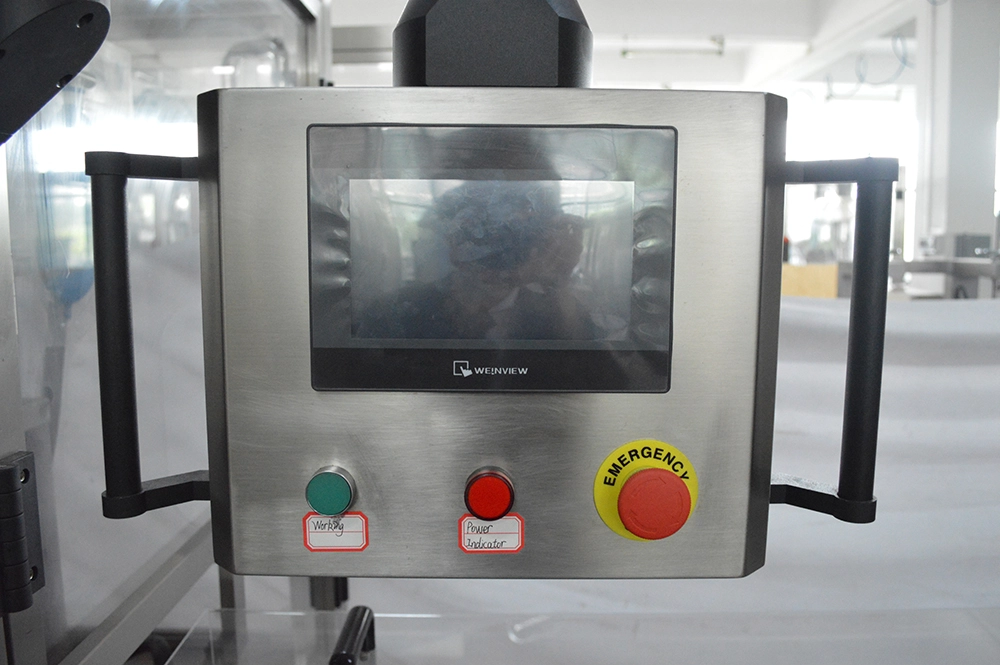

Human computer interface |
Equipped with servo motor |

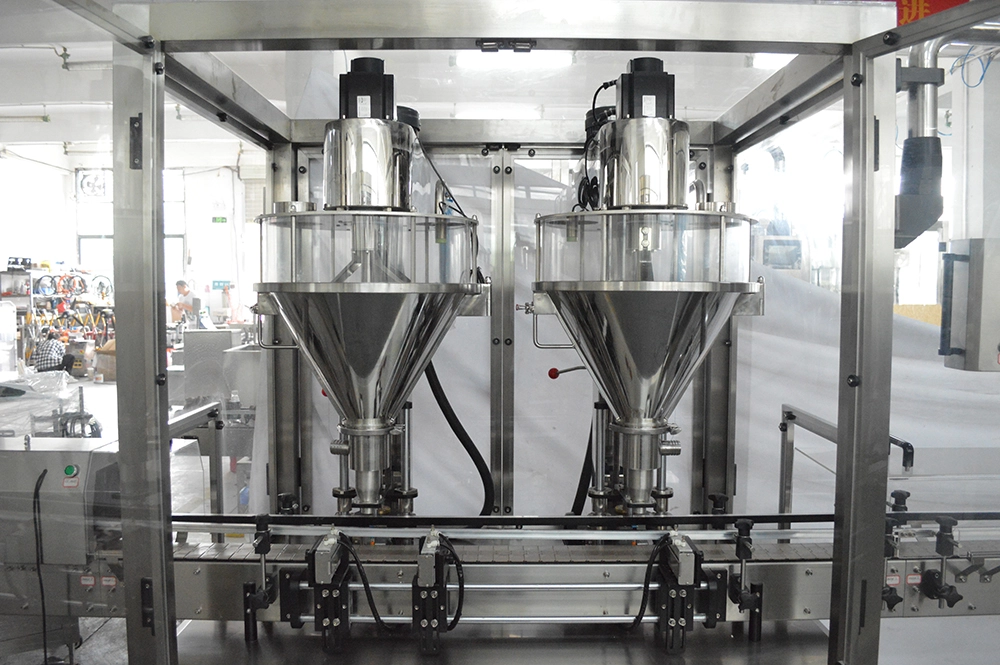

Transparent visual silo |

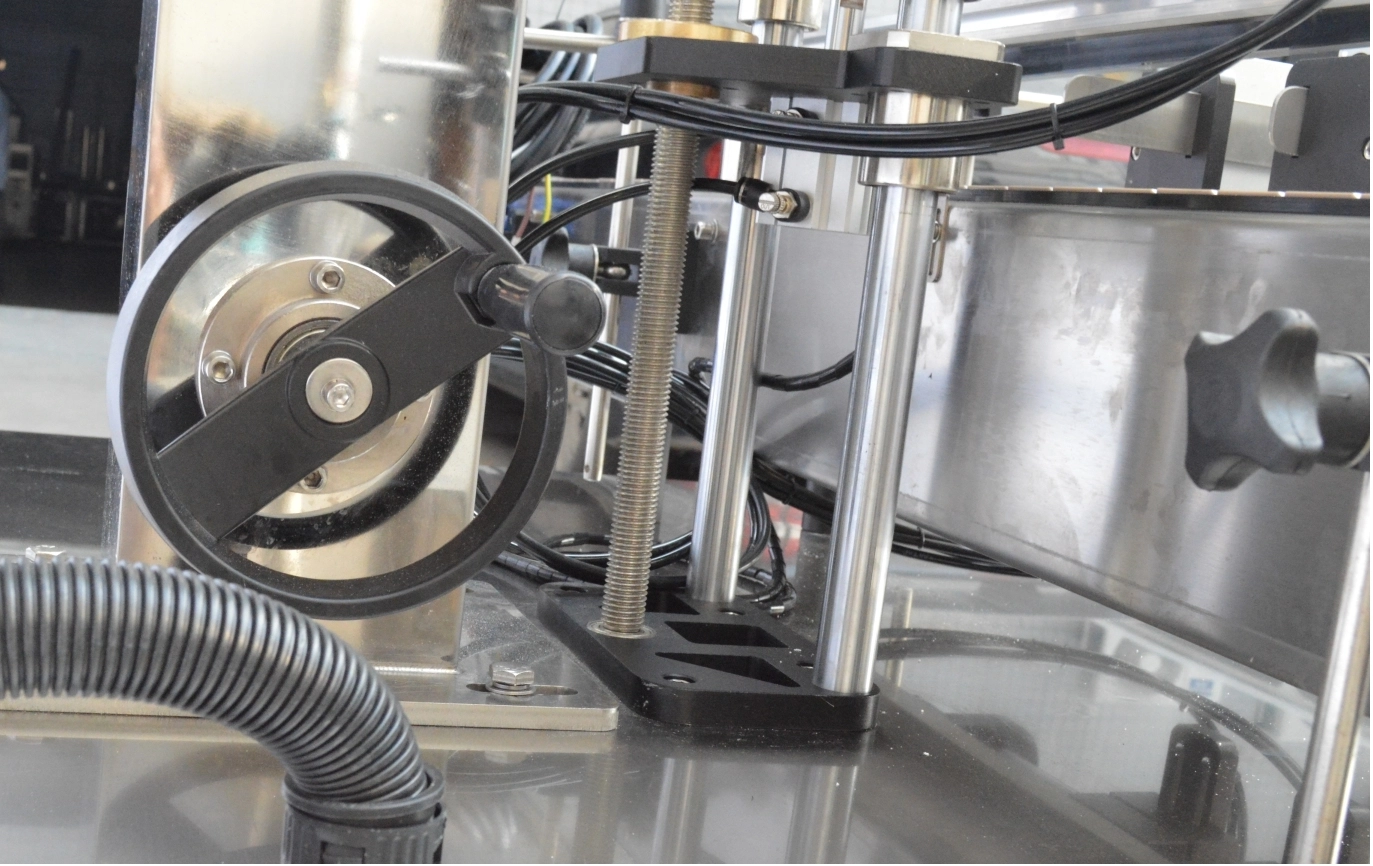

Adjustable measuring system |
