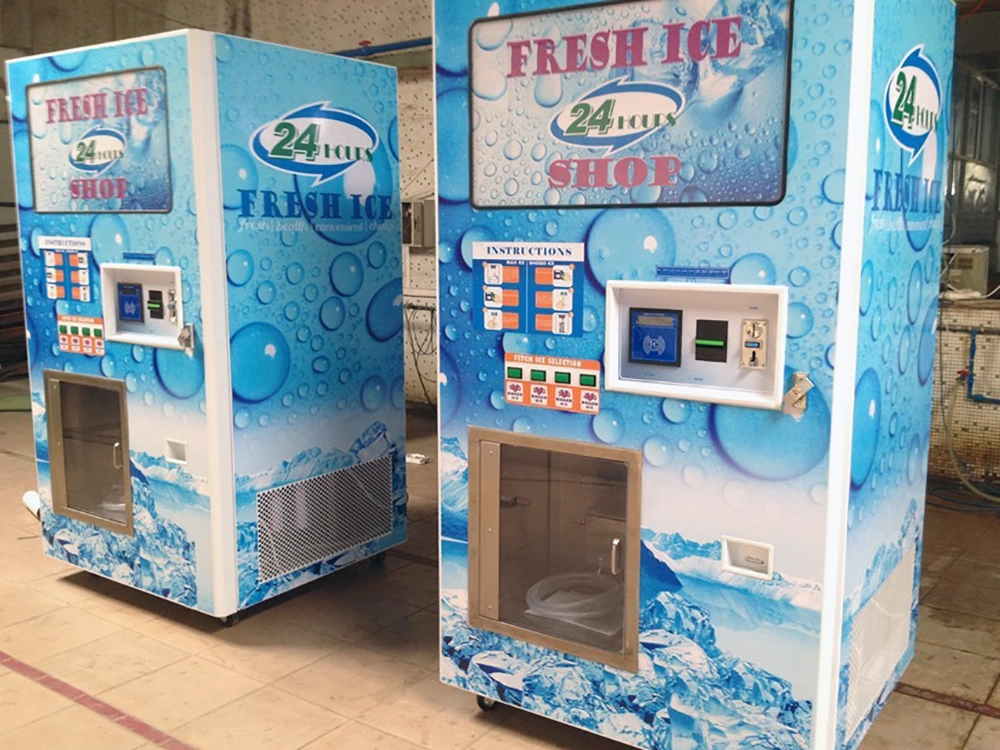

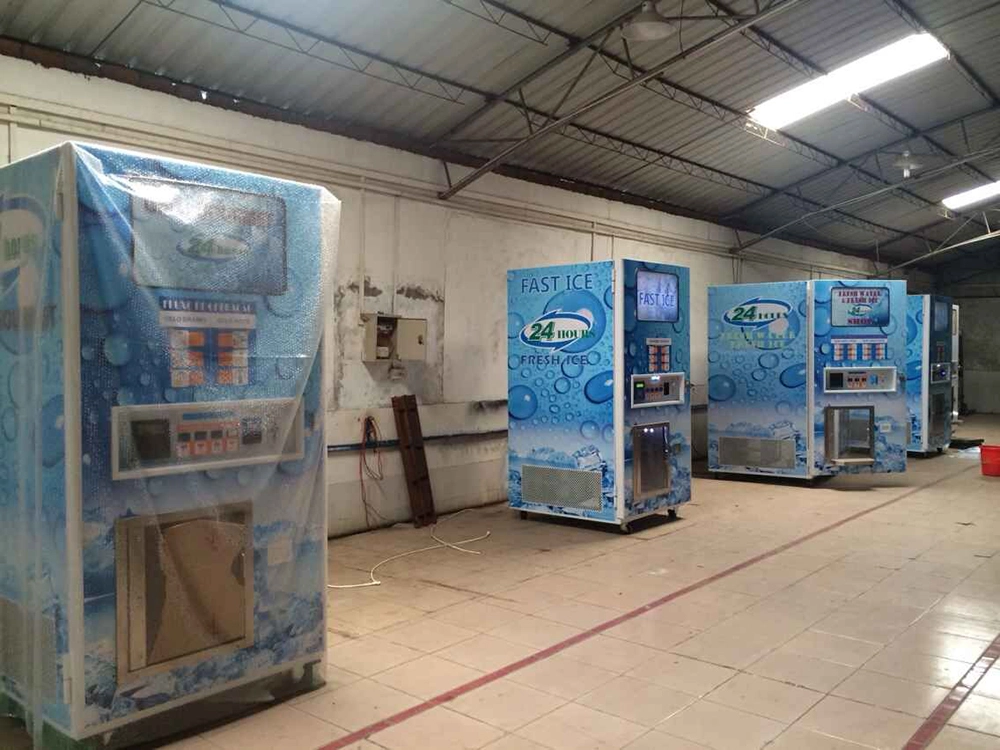

Ice Vending Machine
Jndwater ice vending machine is an intelligent device that integrates ice making, storage, and automatic vending. Unlike traditional ice makers, ice vending machines not only produce ice but also automatically handle storage and sales, and are commonly found in supermarkets, convenience stores, gas stations, and other similar locations. This article will introduce the basic principles, product types, and application selection of ice vending machines.
Ice Vending Machine detailed description
Products Description
Jndwater ice vending machine is an intelligent device that integrates ice making, storage, and automatic vending. Unlike traditional ice makers, ice vending machines not only produce ice but also automatically handle storage and sales, and are commonly found in supermarkets, convenience stores, gas stations, and other similar locations. This article will introduce the basic principles, product types, and application selection of ice vending machines.
Application:
1. Capacity: 140KG-900KG per day.
2. waterproof all-steel cabinest, the front door open dessign,safeety and health durable and easy installation.
3. The parts of connecting with ice and water ,used stainless steel 304,all adopt food grade.
5. Payment system: cion or IC card,change available(additional function).
6. GSM available
7. Automatic bagging, cut,packing, sealing.
8. No ice. not sell.
9. Add RO water treatment system, ice-cube can be eaten directly.
Main Technical Parameters:
| Power Supply | Ac 380V-50Hz/ Ac 220V-60Hz (3phase) |
| Consumption | 3.5KW |
| Capacity Of Ice | 450KG/24H(ambient Temperature 20°C) |
| Size Of The Ice-Cube | 2.2cm×2.2cm×2.2cm |
| Capacity Of Ice Mold Space | 540 Space |
| Spec Of Compressor | 3P |
| Refrigerant | R404a |
| Material Of Ice Tank | Stainless Steel 304 |
| Water Source | Tap Water(Storage tank available) |
| Pressure Of Raw Water | ≥0.1mpa |
| Capacity Of Pure Water | optional |
| Recovery | 30% To 50% |
| Sales Method | Induction IC Card/Coin |
| Dispensing Ice | Bulk Ice/Bag Ice |
| Bag Size | 300*550mm |
| Bag Thickness | 0.05mm (Single Layer) |
| Range Of Bag Ice | 1KG To 4.5KG |
| Capacity Of Inside Storage Bag | About 250 Pcs |
| Size Of Bulk Ice Tank | W45cm×D35cm×50cm (Incubator Within The Size) |
| Machine Size | W120cm×D105cm×220cm |
