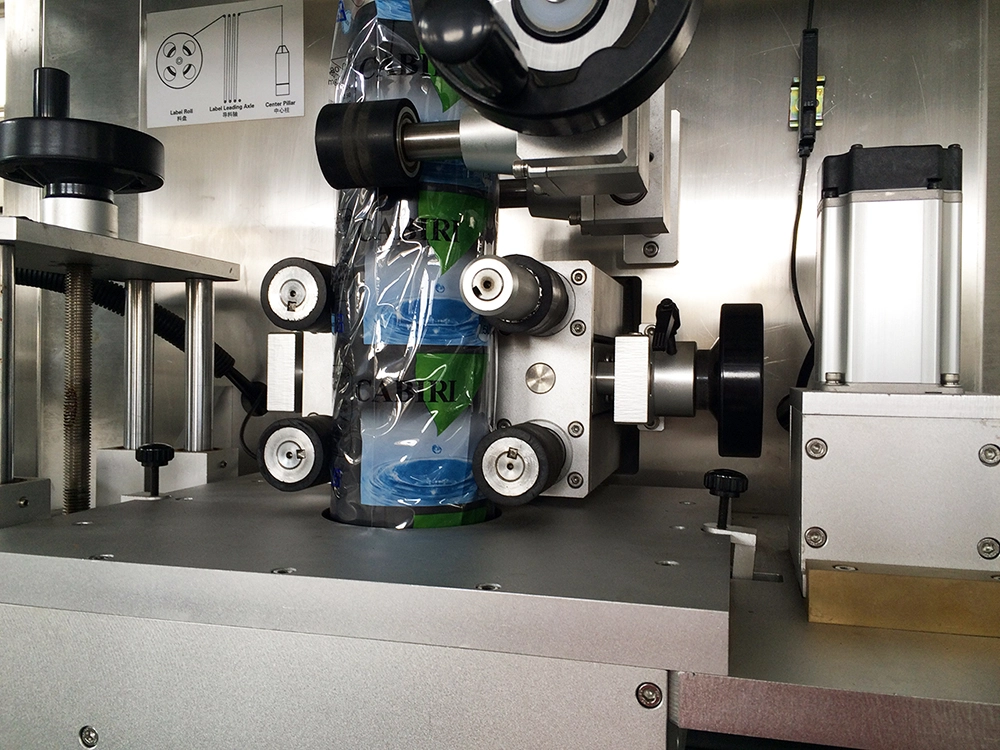

Shrink Sleeve Label Machine

Jndwater automatic double-head sleeve labeling machine is mainly suitable for the needs of one type of bottle sleeve with two labels, such as sleeve label on the bottle body first and then sleeve label on the bottle mouth, etc., to improve production efficiency! All of them are made of high-quality stainless steel materials, and the two machines are combined in one, with more stable performance and an accuracy of 99%.
It can be used for both the bottle mouth and the bottle body. Various bottle samples such as curved bottle and screw bottle

This field is required.
This field is required.
This field is required.

Shrink Sleeve Label Machine detailed description

Products Description

1. Product introduction
Jndwater automatic double-head sleeve labeling machine is mainly suitable for the needs of one type of bottle sleeve with two labels, such as sleeve label on the bottle body first and then sleeve label on the bottle mouth, etc., to improve production efficiency! All of them are made of high-quality stainless steel materials, and the two machines are combined in one, with more stable performance and an accuracy of 99%.
It can be used for both the bottle mouth and the bottle body. Various bottle samples such as curved bottle and screw bottle

2. Bottle Llabeling Machine Product features
1. The whole machine is made of stainless steel: it is made of stainless steel SUS304, with simple structure, beautiful appearance, easy to clean, and the whole machine is waterproof and does not rust.
2. Unique cutting knife system: static rotary cutting method, label cutting is smooth, no flash, no burr.
3. Unique label position positioning device: to ensure the accurate positioning of the label in the sleeve labeling process.
4. Adopt modular design and mold chopsticks control to realize precise and high-speed labeling.
5. The high-quality touch screen operation section is used to realize finger operation, which is convenient and fast.
6. The whole machine has a high degree of automation, is easy to use, only needs one person to operate, and is easy to maintain.

3. Bottle Labeler Product functions
Automatic labeling: Precisely locate and fit labels, support label length 30-250mm, thickness 0.03-0.13mm.
​Heat shrinkage: Steam or hot air heating system (adjustable from 0-300℃) ensures that the label is flat and wrinkle-free.
​Intelligent detection: Photoelectric sensors monitor the position of the bottle in real time and automatically adjust the labeling and cutting actions.

4. Technical specifications

Output: 150 B/MIN
Power Supply:AC220V380V 50Hz/60Hz

5. How does the shrink sleeve machine work?

​Conveying and positioning: The bottle enters the equipment through the conveyor belt, and the photoelectric sensor triggers the label sleeve signal.
​Label cutting: The servo system accurately cuts the label and sleeves it on the bottle.
​Heat shrinkage shaping: The bottle enters the steam or hot air shrinking oven (180-250℃), and the label shrinks and fits under the heat.
​Cooling output: The cooling system quickly shapes and the finished product is conveyed to the next process.

6. Applications
​Beverage industry: bottle labels for mineral water, juice, carbonated drinks, dairy products, etc.
​Daily chemicals: shampoo, cosmetics, detergent bottle packaging.
​Medical field: anti-counterfeiting labels for medicine bottles and disinfectant containers.

7.FAQs
Q: What types of bottles can be processed?
A: Suitable for bottles of various shapes, including cylindrical, square, oval, etc.
