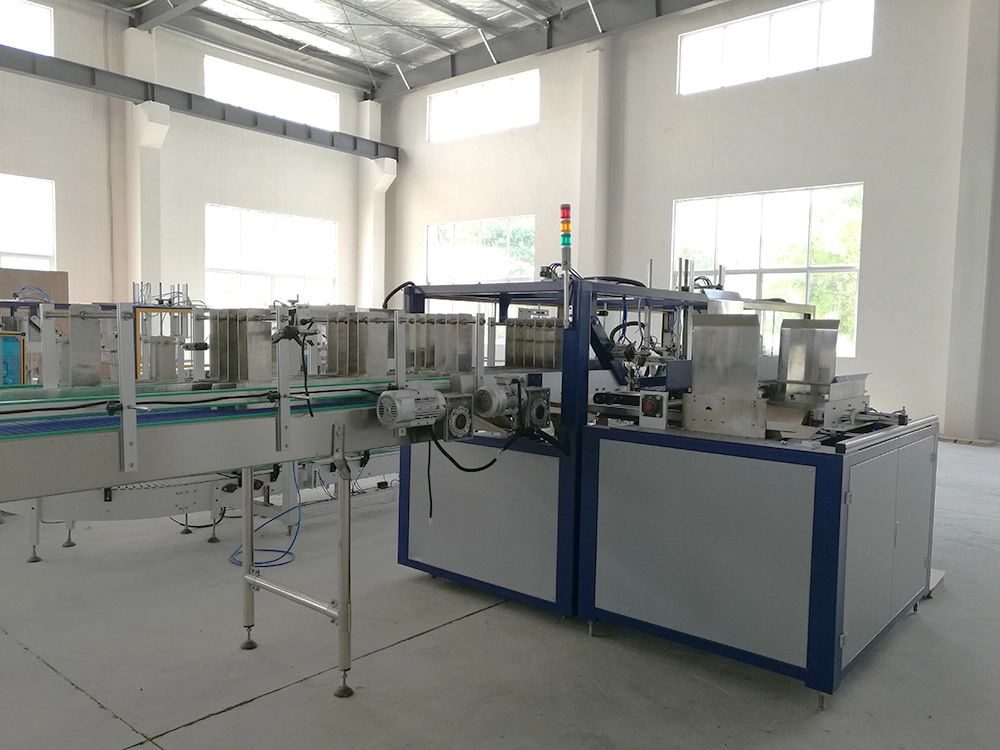

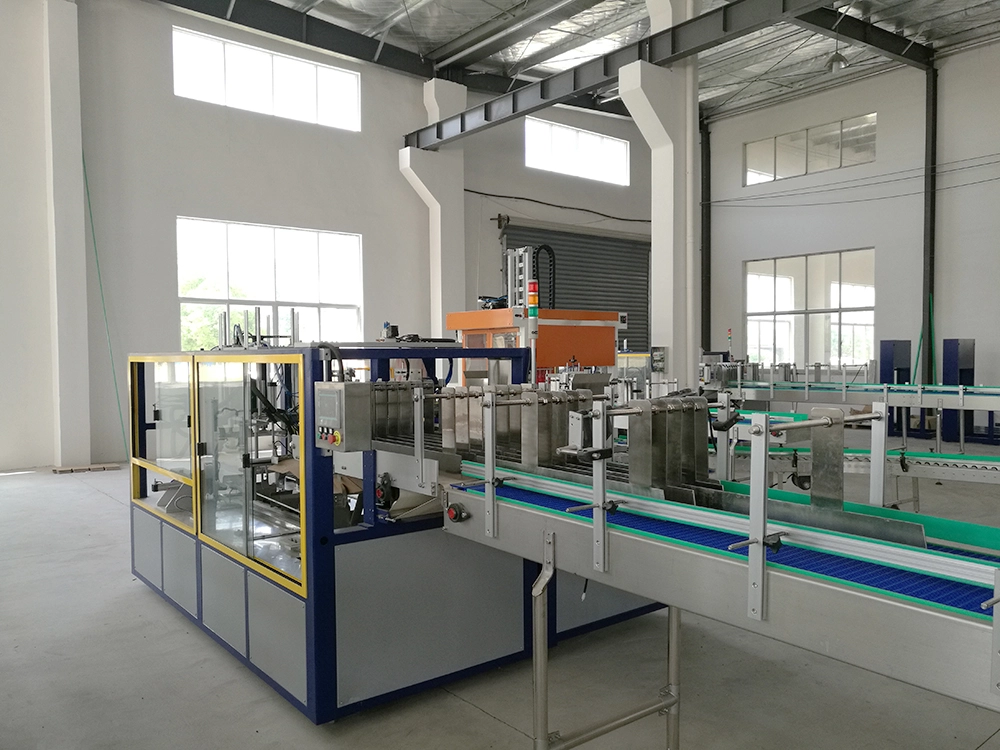

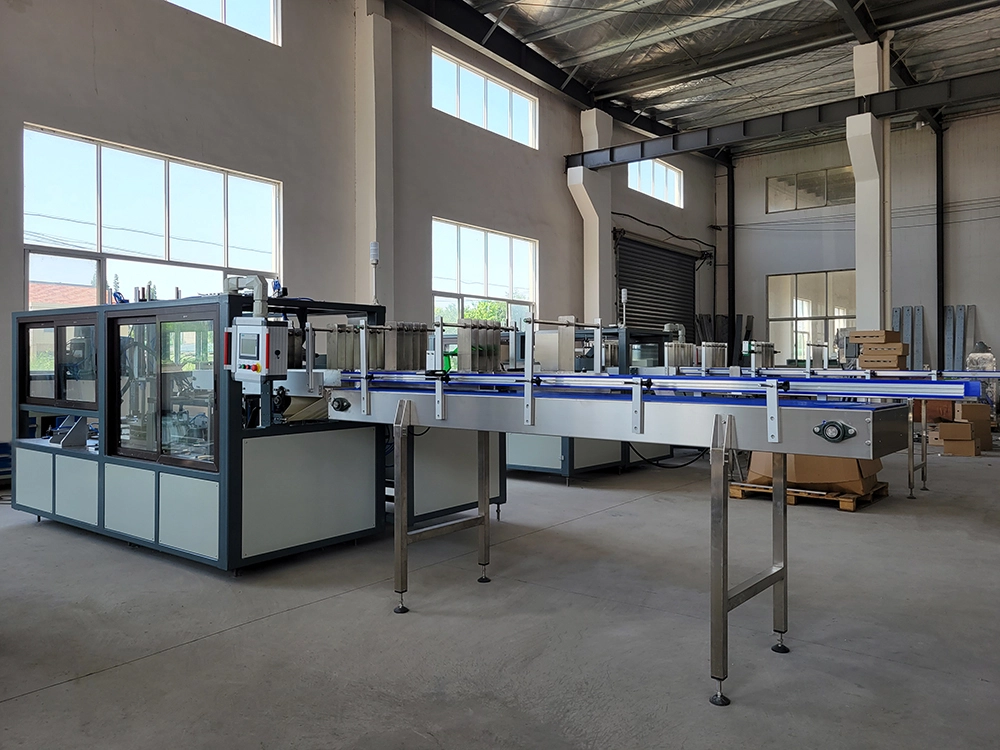

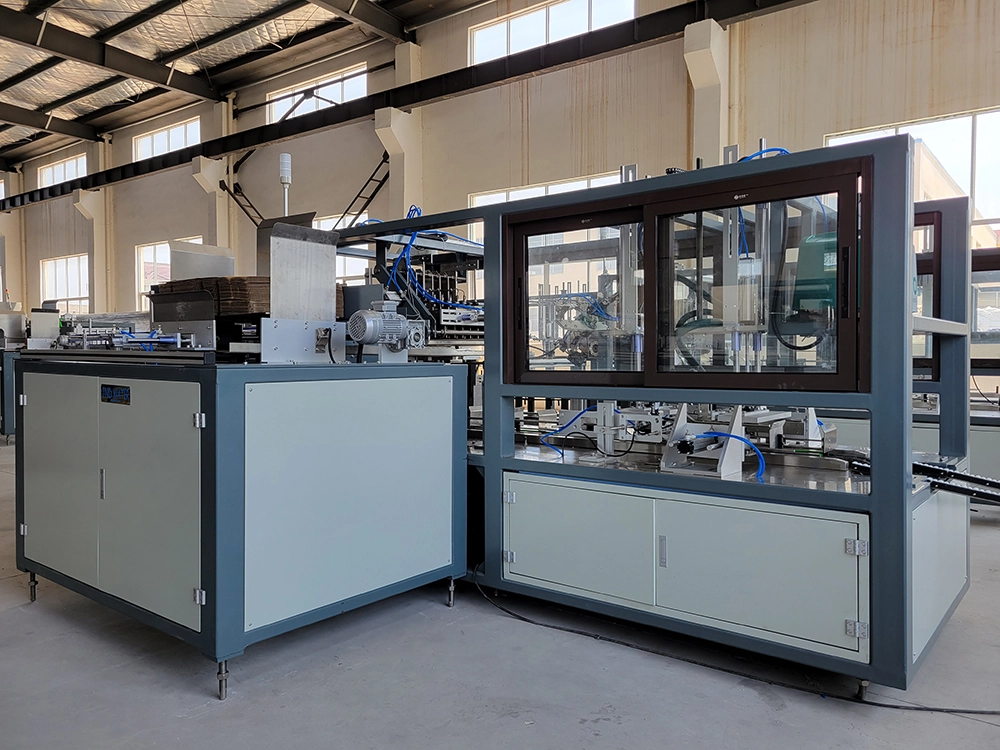

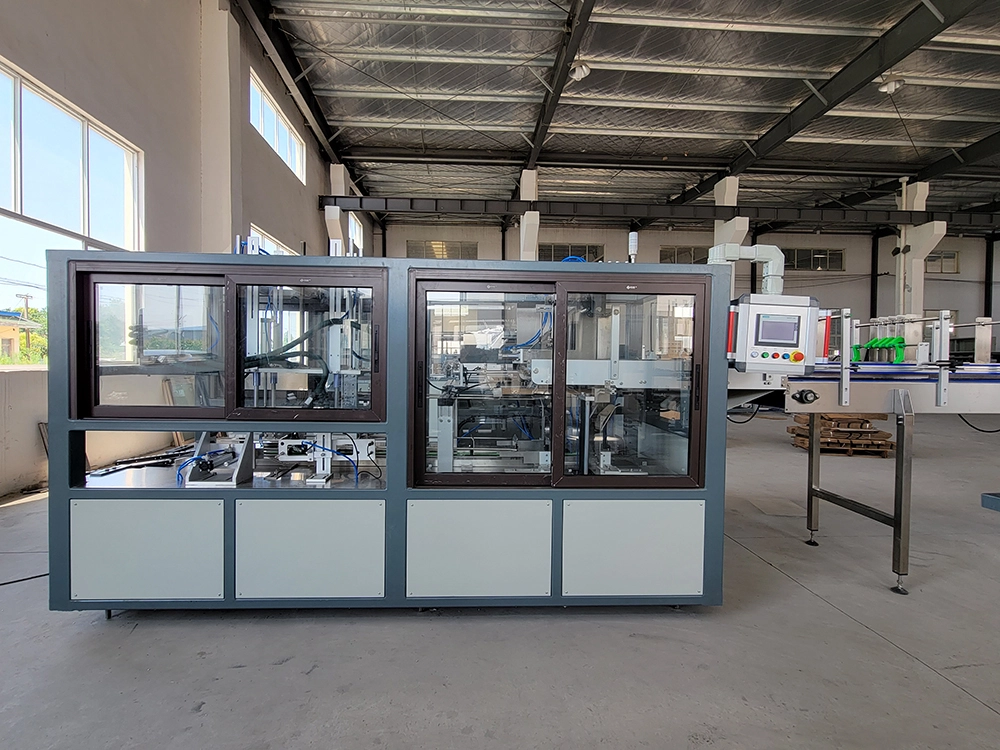

Wrap Around Carton Packing Machine
The cartoning machine uses a servo motor for precise position control. The PLC system maintains overall control of the entire carton making process. A high level of automation can be achieved. Imported motor drive controls the degree of rotation via the chain. A speed regulator keeps the speed of sprocket in check.
Wrap Around Carton Packing Machine detailed description
Products Description
The cartoning machine uses a servo motor for precise position control. The PLC system maintains overall control of the entire carton making process. A high level of automation can be achieved. Imported motor drive controls the degree of rotation via the chain. A speed regulator keeps the speed of sprocket in check.
Due to reliable control, ease of adjustment, and intelligent operation, the cartoner can be widely used in beverage, beer, chemistry, food, and medicine industries, serving either as a stand-alone device or being integrated into an automatic production line.
Cartoning Process

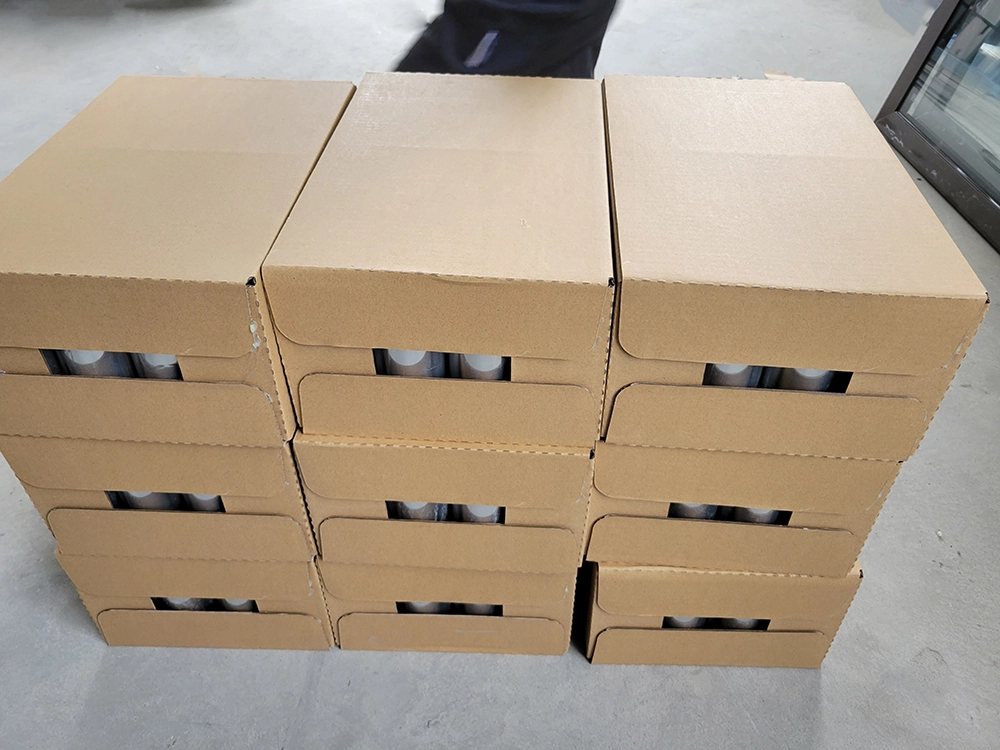

Turning incoming paperboards automatically into cartons
Sealing Method
Hot-melt adhesive
Technical Parameters:
| Model | JND-250A |
| Power | AC 220V/380V–50/60HZ ,10KW |
| Cartoning speed | 10-25 carton/min |
| Packing material | carton |
| Containers | diameter:50-108mm; height:70-360mm |
| Packs | length:350-450mm; width:20-330mm; height :85-360mm |
| Hot melting glue solidify time | 1.5-2.5 second |
| Working pressure | 0.6-0.8 Mpa ,1500L/min |
| Overall size | 6250mm*2582mm*2115mm |
