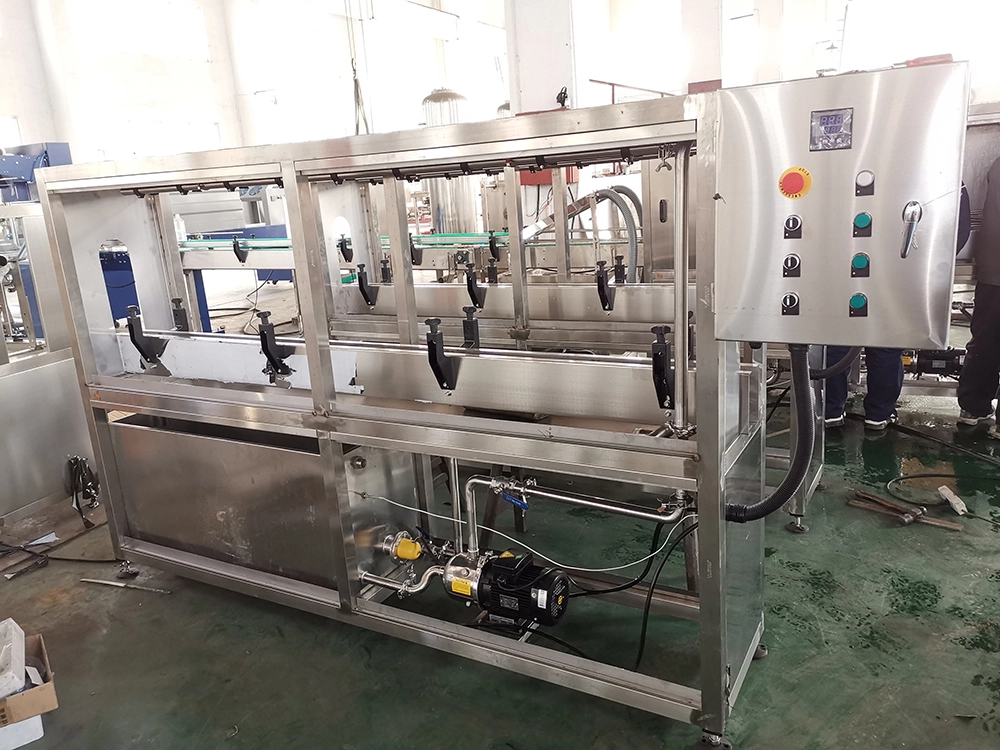

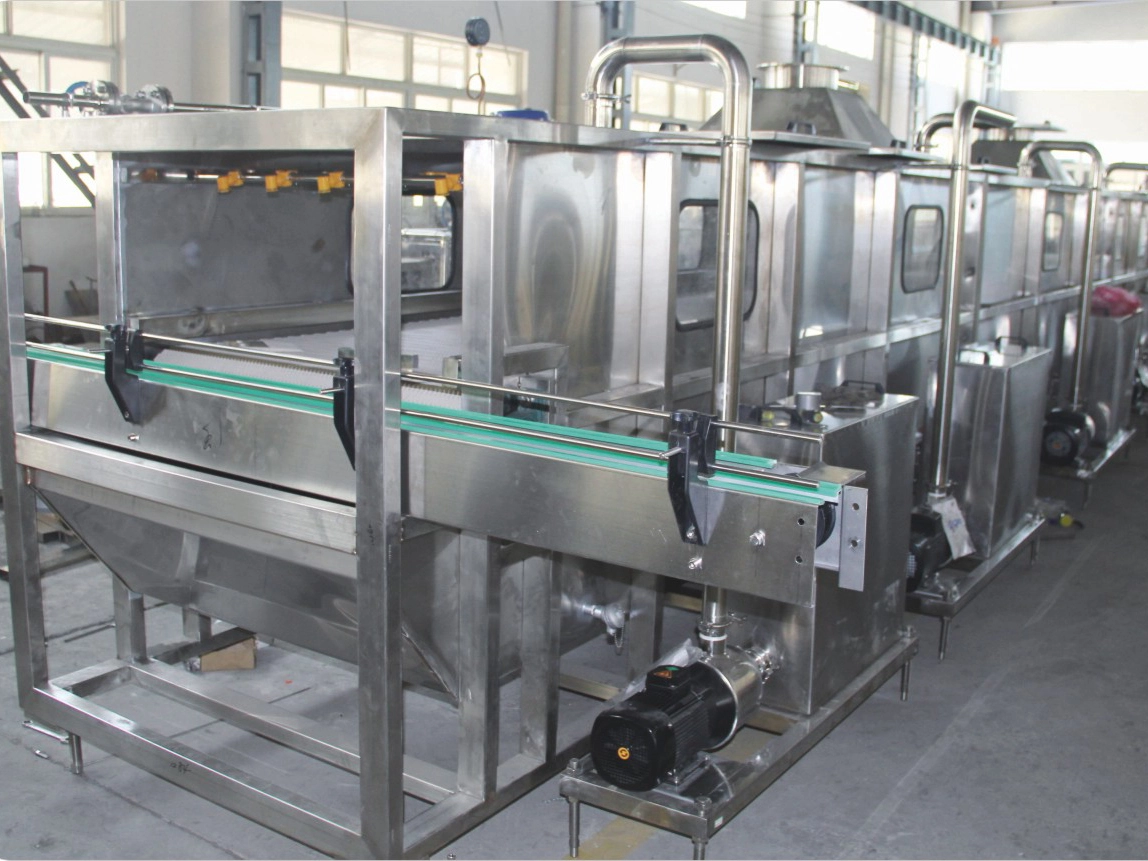

Water Spray Type Bottle Cooling(Warming) Machine
Based on advanced same technologies from Germany, Italy and Taiwan, we developded this new type of bottle cooling/heating machine Its working process can be divided into 3 stages: circulating hot water spraying, warm water pre-cooling and cold water-cooling. The cooling/heating temperature and time can be regulated in according to the requirements of user. It is suitable for cooling or heating all kinds of bottled or canned hot beverage and aerated beverage. It equips with ‘Rexnord’ (American famous brand ) chain plate, which made of high temperature resistance polypropylene (CPP).lts structures is made of fine stainless steel. So the machine is more reliable in running, also it has a beautiful appearance.
Water Spray Type Bottle Cooling(Warming) Machine detailed description
Products Description
Based on advanced same technologies from Germany, Italy and Taiwan, we developded this new type of bottle cooling/heating machine Its working process can be divided into 3 stages: circulating hot water spraying, warm water pre-cooling and cold water-cooling. The cooling/heating temperature and time can be regulated in according to the requirements of user. It is suitable for cooling or heating all kinds of bottled or canned hot beverage and aerated beverage. It equips with ‘Rexnord’ (American famous brand ) chain plate, which made of high temperature resistance polypropylene (CPP).lts structures is made of fine stainless steel. So the machine is more reliable in running, also it has a beautiful appearance.
| Model | JND-1550 | JND-1570B | JND-2770A | JND-30120 |
| Production Capacity(BPH) | 6000(0.6L) | 12000(0.BL) | 18000(0.6L) | 36000(0.6L) |
| 3000(1.25L) | 7000(1.25L) | 9000(1 25L) | 18000(1.25L) | |
| Bottle Height(mm) | 150-340 | 150-340 | 150-340 | 150-340 |
| Inlet Temperature^) | >10 | >10 | >10 | >10 |
| Outlet TemparatureCC) | <40 | <40 | <40 | <40 |
| Power Consumption(kw) | 6.24 | 9 | 12.5 | 18.5 |
| Water Consumption(t/h) | 0.2 | 0.2 | 0.35 | 0.60 |
| Steam Consumption(kg/h) | 180 | 290 | 500 | 952 |
| Dimension(mm) | 5100X2200X2200 | 7100X2200X2200 | 10200X3400X2200 | 12200X3700X2200 |
| Weight(kg) | 2000 | 3000 | 5000 | 10500 |
