Tubular pasteurizer

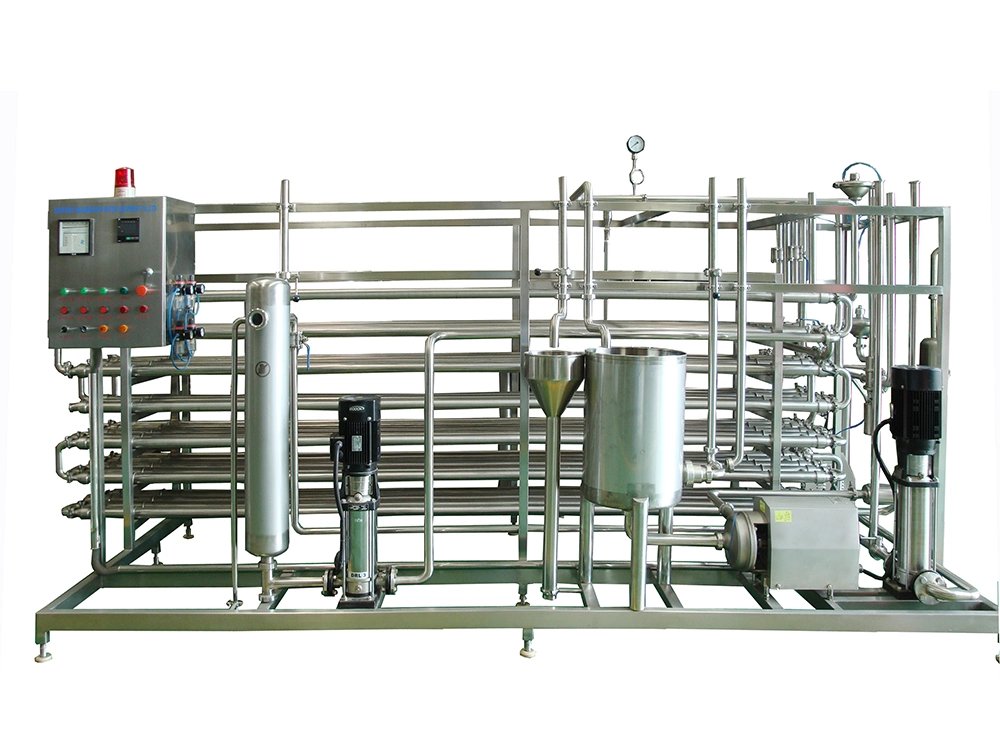

Jndwater tubular pasteurizer is a complete processing unit that uses multiple concentric tubes or tube bundles as heat exchange elements to continuously heat, sterilize, and cool fluid materials. It consists of a heat recovery section, a heating section, a heat preservation section, and a cooling section. Inside the equipment, the material flows in the tube side, while the heating or cooling medium flows in the shell side, exchanging heat through the tube walls.
Tubular pasteurizer detailed description
Products Description
Jndwater tubular pasteurizer is a complete processing unit that uses multiple concentric tubes or tube bundles as heat exchange elements to continuously heat, sterilize, and cool fluid materials. It consists of a heat recovery section, a heating section, a heat preservation section, and a cooling section. Inside the equipment, the material flows in the tube side, while the heating or cooling medium flows in the shell side, exchanging heat through the tube walls.
Applications of Tubular Pasteurizers
Tubular pasteurizers are widely used in various food industries, including beverages, dairy products, and condiments:
Dairy Products: Pure milk, pasteurized milk, yogurt, cream, condensed milk
Fruit Juices: Concentrated fruit juice, pulp juice, smoothies (containing fiber)
Tea and Plant-Based Protein Beverages: Herbal tea, coconut milk, soy milk, walnut milk
Condiments: Soy sauce, vinegar, ketchup, salad dressing
Alcoholic Beverages: Beer, wine, rice wine
Others: Honey, syrup, egg liquid, etc.
Key Features:
1. Wide Applicability: Suitable for processing complex materials such as jams, fruit purees, tomato sauce, fruit-containing yogurt, and eight-treasure porridge.
2. Long Operating Time and Low Maintenance Costs: Employs a gasket-less structure or a minimal number of circular gaskets. During long-term continuous production, it does not require frequent gasket disassembly and cleaning like plate heat exchangers, resulting in a low equipment failure rate.
3. High Heat Recovery Rate (Energy Saving and Environmental Protection): Through multi-stage design, the heat recovery rate of tubular heat exchangers typically reaches 93% or even 96% or higher.
4. High Pressure Resistance: The shell and tube sides of tubular heat exchangers can withstand higher pressures than plate heat exchangers, making them suitable for production lines requiring high-pressure homogenization or processing of high-viscosity fluids.
