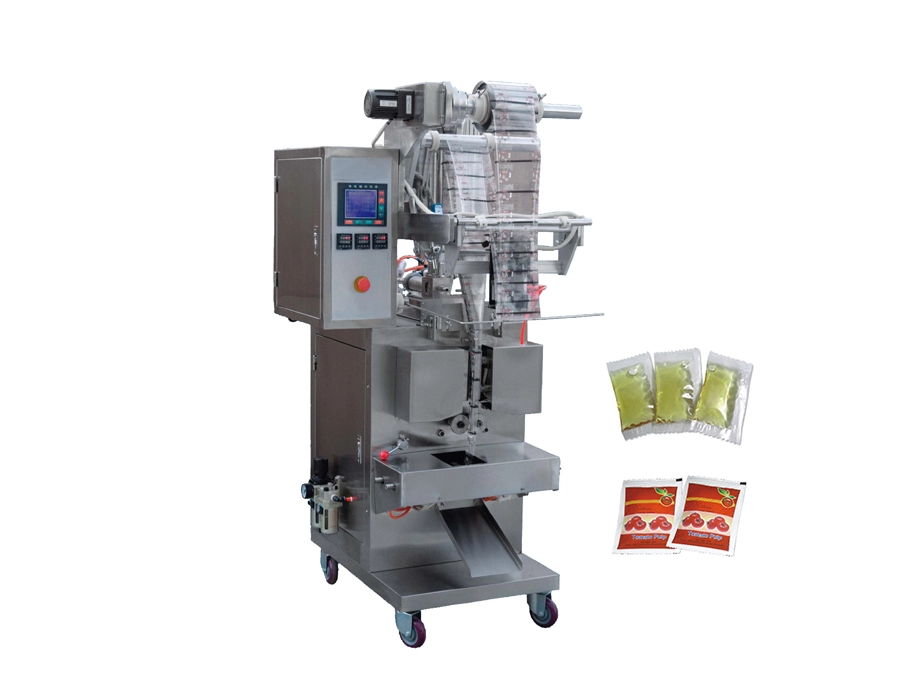

Seimi-Liquid Sachet Packing Machine
It can finish the production’s process automatically such as making bags, counting, filling, sealing, cutting, printing batch number, making the rip, and so on.
It also adopts the adjustable quantificational plunger pump, and it is specially uses for something which easy to drawbench or dript as Oil, jam, shampoo, cream.
Seimi-Liquid Sachet Packing Machine detailed description
Products Description
jndwater series semi-liquid bag pack machine adopts computer control system completely.
Bag size:5-1000ml
Filling speed:1800-3600BPH
It can finish the production’s process automatically such as making bags, counting, filling, sealing, cutting, printing batch number, making the rip, and so on.
It also adopts the adjustable quantificational plunger pump, and it is specially uses for something which easy to drawbench or dript as Oil, jam, shampoo, cream.
Sealing type: The bag can be sealed on three sides, four sides, or pillow.
Packaging material: Paper/pe pet/al foil/penylon/pe,tealeaf filtering paper & ect.
Extra cost: Hot stamp ribbon coder(color style,ink wheel style).
| Model | JND-S500 |
| Capacity (Pcs/min) | 30-60 |
| Packing range (ml) | 200-1000 |
| Power(kw) | 1.6 |
| Max. length of bag (mm) | 80-300 |
| Max. width of bag(mm) | 90-190 |
| Dimension (L×W×H) (mm) | 900×2000×2040 |
| Weight(kg) | 500 |
